Machining range and capability
1, suitable for cutting space: two-dimensional plane cutting;
2, application: rail transportation, shipbuilding, automobile, engineering machinery, agricultural machinery, electrical manufacturing, elevator manufacturing, household appliances, food machinery, textile machinery, tools, petroleum machinery, food machinery, kitchen bathroom decoration, advertising, laser processing services such as foreign processing machinery manufacturing industry;
3. Cutting materials: carbon steel, stainless steel, aluminum alloy, brass, red copper, acid washing plate, galvanized sheet, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy;
4 、 cutting range: 0.5~20mm carbon steel, 0.5~12mm stainless steel, aluminum alloy 0.5~10mm, brass 0.5~8mm;
5, the unique cutting function: flying fast cutting technology, 6mm technology, carbon steel 0 seconds perforation less than 8mm stainless steel, Aluminum Alloy compressed air cutting technology.

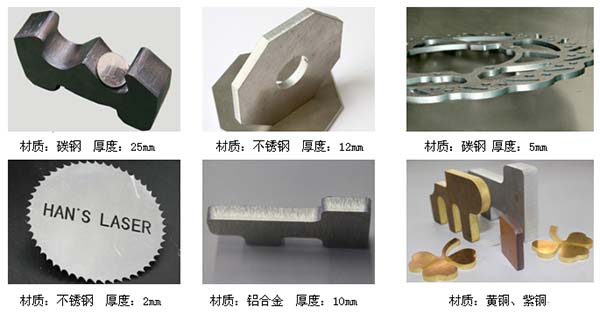

6 、 typical cutting sample
7、cutting speed meter for various metal materials
Material thickness(mm) |
Material category |
Cutting speed (m/min) |
Auxiliary gas |
1 |
Carbon Steel |
8.0-12.0/35.0-45.0 |
Oxygen / Nitrogen |
2 |
5.0-7.5/16.0-20.0 | ||
3 |
3.8-5.0/10.0-14.0 | ||
4 |
3.5-4.5/4.5-6.5 | ||
5 |
3.0-3.8 |
Oxygen | |
6 |
2.6-3.2 | ||
8 |
2.0-2.5 | ||
10 |
1.8-2.1 | ||
12 |
1.0-1.5 | ||
14 |
0.9-1.0 | ||
16 |
0.75-0.85 | ||
18 |
0.7-0.8 | ||
20 |
0.6-0.75 | ||
1 |
Stainless Steel |
45.0-55.0 |
Nitrogen |
2 |
18.0-27.0 | ||
3 |
10.0-15.0 | ||
4 |
5.0-7.5 | ||
5 |
4.0-5.0 | ||
6 |
3.0-4.0 | ||
8 |
1.5-2.6 | ||
10 |
0.8-1.3 | ||
12 |
0.65-0.8 | ||
1 |
Aluminium Alloy |
35.0-40.0/45.0-55.0 |
Oxygen / Nitrogen |
2 |
13.0-22.0/18.0-27.0 | ||
3 |
7.0-13.0/9.0-14.0 | ||
4 |
4.0-5.5/4.5-6.5 | ||
5 |
3.0-4.0/3.5-5.0 | ||
6 |
2.2-3.5/3.0-4.0 | ||
8 |
0.9-1.6/1.5-2.0 | ||
10 |
0.55-1.0 |
Nitrogen | |
1 |
Brass |
25.0-30.0/18.0-35.0 |
Oxygen / Nitrogen |
2 |
10.0-13.0/10.0-15.0 | ||
3 |
5.0-6.5/6.0-7.5 | ||
4 |
3.0-5.2 |
Nitrogen | |
5 |
2.0-3.0 | ||
6 |
1.4-2.0 | ||
8 |
0.7-0.8 |
Remarks: the above cutting parameters are the factory test data, which are for your reference.
Technical specification parameter
Processing width and working range |
|
Processing width (length × width) |
6000mm×2500mm |
X Axis travel |
6030mm |
Y Axis travel |
2520mm |
Z Axis travel |
300mm |
Accuracy |
|
X,Y Axis positioning accuracy |
±0.03mm/m( Overall length 0.08 mm) |
X,Y Axis repeated positioning accuracy |
±0.02mm |
Speed |
|
X,Y Axis maximum positioning speed |
100m/min |
X/Y Axis maximum linkage positioning speed |
140m/min |
X,Y Axis maximum acceleration |
1.0G |
Switchboard exchange time |
18 second |
Power parameter |
|
Phase number |
3 |
Rated voltage of power supply |
380V |
Frequency |
50Hz |
Total power protection level |
IP54 |
Weight and size |
|
Maximum load of table |
3000kg |
Machine weight |
20000Kg |
Overall dimensions (L × w × h) |
14900mm×4020mm×2320mm |
